| Brand Name : | J55/K55/N80/L80/P110 |
| Model Number : | 4-1/2" |
| Certification : | API-5CT, ISO9001 |
| Price : | USD |
| Payment Terms : | T/T, L/C |

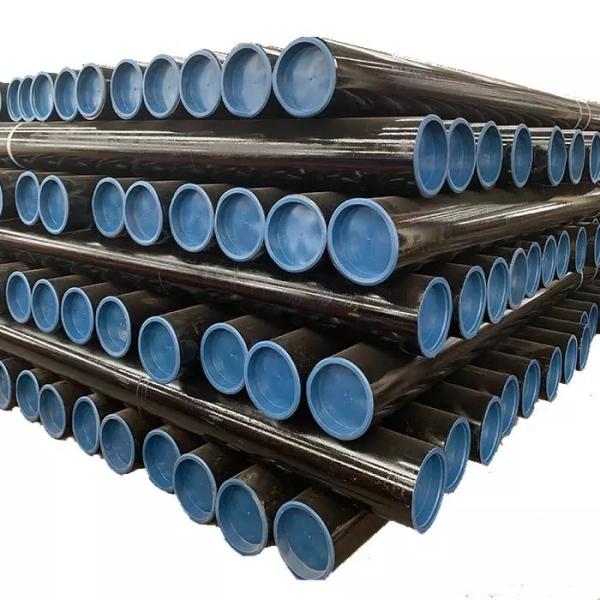

Hot Rolled Octg Tubing Hollow Carbon , Oilfield Tubular Goods API 5CT
Description of OCTG Tubing
Tubing is pipe used for the transportation of crude oil and natural gas from an oil or gas layer to the surface after drilling is complete. It is made to withstand the pressure generated from the extraction process.
What is OCTG tubing?
The term Oil Country Tubular Goods describes tubes that are used in
oil and gas production: As a rule these include drill pipe, casing
and tubing. Oil Country Tubular Goods are used both onshore and
offshore. In the industry, they are also referred to by the acronym
OCTG (for “Oil Country Tubular Goods”).
Specification Of OCTG Tubing
| O.D. | Nominal mass | O.D. | w.t. | Nominal weight | Type of pipe end | |||||||||
| (lb/ft) | (kg/m) | |||||||||||||
| Threaded and coupled | Threaded and coupled | Grade | ||||||||||||
| NUE | EUE | In. | mm | In. | mm | NUE | EUE | J-55 | L-80 | N-80 | C-90 | T-95 | P-110 | |
| 4 1/2" | 12.60 | 12.75 | 4.500 | 114.30 | 0.271 | 6.88 | 18.75 | 18.97 | PUN | PNU | PNU | PNU | PNU | -- |
| 15.20 | -- | 4.500 | 114.30 | 0.337 | 8.56 | 22.62 | -- | -- | P | -- | P | P | -- | |
| 17.00 | -- | 4.500 | 114.30 | 0.380 | 9.65 | 25.30 | -- | -- | P | -- | P | P | -- | |
| 18.90 | -- | 4.500 | 114.30 | 0.430 | 10.92 | 28.13 | -- | -- | P | -- | P | P | -- | |
| 21.50 | -- | 4.500 | 114.30 | 0.500 | 12.70 | 32.00 | -- | -- | P | -- | P | P | -- | |
| 23.70 | -- | 4.500 | 114.30 | 0.560 | 14.22 | 35.27 | -- | -- | P | -- | P | P | -- | |
| 26.10 | -- | 4.500 | 114.30 | 0.630 | 16.00 | 38.84 | -- | -- | P | -- | P | P | -- | |
| P-Plain; N-No threading and no coupling; U-Upset with threading and coupling | ||||||||||||||
